Designed to Perform
Anchor: crea
modell 4 - 1

Customized and Full-Surface Solutions

TeraSlate Crea

Crea is a customizable module that is tailored to the specific requirements of different roof shapes. It enables complete integration of solar roofs and a homogeneous surface design, even with complex or challenging roof structures. Crea modules are available in three variants: electrically active modules for performance enhancement, inactive modules for a harmonious appearance and modules without cells for optimal visual adaptation. They are also available in different colours and in a satinised, low-glare version.

Maximum lead down to the last corner
Compatible with the proven 3S substructure
Suitable for perfect edge finishes
Maximum flexibility due to customized modules for project-specific requirements
Ideal for modern architecture and full-surface integration

CREA MZ & BZ
CREA MZ & BZ (2)
CREA MZ & BZ (3)
CREA MZ & BZ (4)
CREA MZ & BZ (5)
CREA MZ & BZ 7

Anchor: dachplatte
modell 4 - 2

The Affordable Solution for Leftover Spaces

Aluminium Roof Panel

The Aluminium Roof Panel is a robust, weather-resistant and efficient solution for large, complex roof areas. With its durable aluminium coating and precise specifications, it withstands extreme weather conditions such as wind, snow and hail and convinces with its ease of use and versatility.

Lightweight and cost-effective alternative to conventional solar modules
Certified fire protection for maximum safety
Appearance can be adapted to match the other modules
Easy to cut to size

Aluverbundplatte
Aluverbundplatte (2)
Aluverbundplatte (3)
Aluverbundplatte (4)

Anchor: mmodul
modell 4 - 3

Standard Modules for Roofs

TeraSlate (M)

The TeraSlate modules from 3S transform every building envelope into an aesthetic, robust and high-performance solar power plant. Four combinable module sizes and customized modules for residual areas enable maximum use of roof and façade surfaces.

Manufactured in Switzerland, production is CO₂-neutral and fulfils Swiss Label standards.

Standard size M: 875 x 935 x 6,5 mm
High performance with up to 196 Wp/m²
Durable and weather-resistant with a 40-year warranty
Robust thanks to hail resistance class 5
Self-cleaning through frameless design
Seamless integration of skylights, snow guards and thermal modules possible

M-Modul Standard (2)
M-Modul Standard

Anchor: alpin

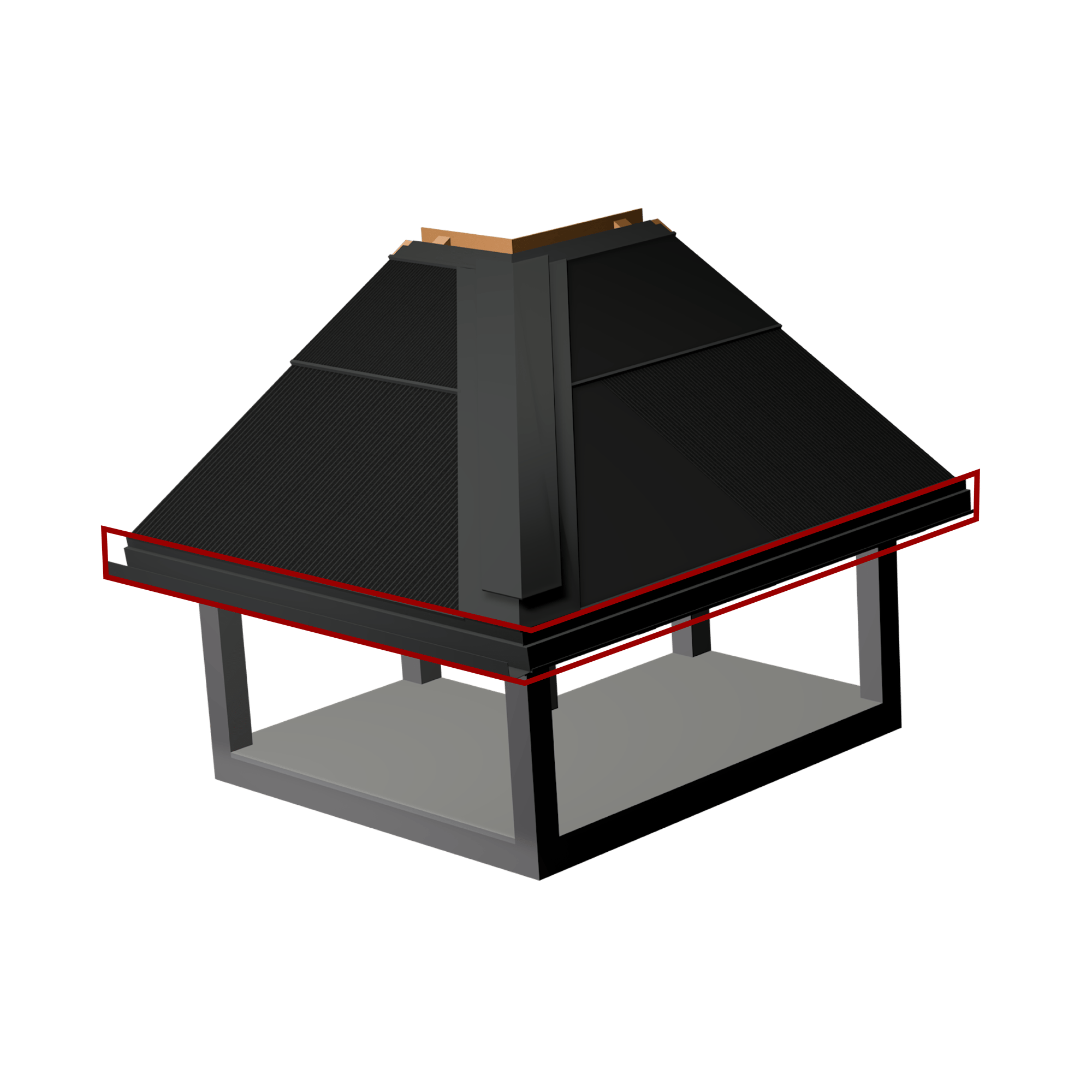

modell 4 - 4

3S Solar Roof for Extreme Requirements

TeraSlate Alpin

The 3S solar roof Alpin has been specially developed for extreme conditions in alpine regions. The reinforced substructure and TeraSlate Alpin hooks ensure maximum stability under high snow and wind loads. Additional snow stoppers reduce the risk of sliding snow, while snow guard systems can be seamlessly integrated depending on the location.

Developed for alpine regions
Suitable for maximum snow loads
Highest resistance to strong wind and suction forces

Alpine Ausführung
Alpine Ausführung 5
Alpine Ausführung (2)
Alpine Ausführung (3)
Alpine Ausführung (4)
